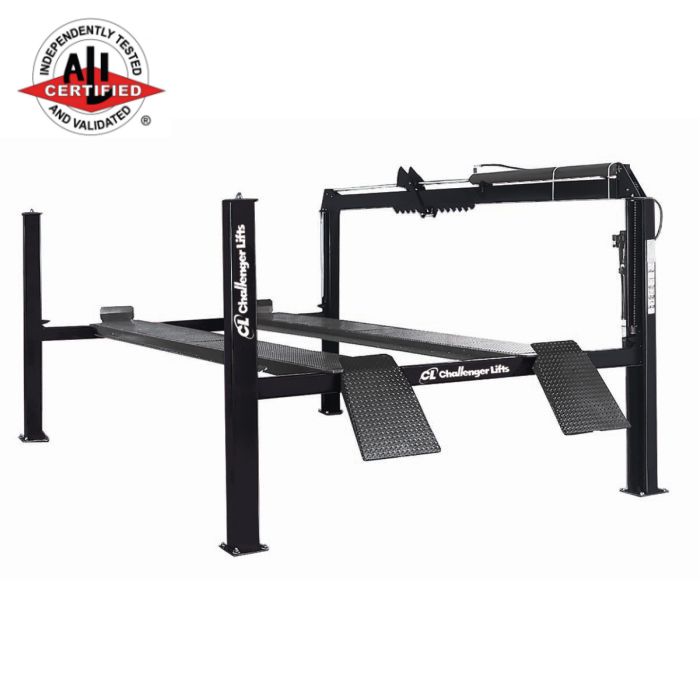

Challenger’s 44018 4-post car lift boasts an impressive 18,000 lb. lift capacity, perfect for the toughest challenges in your automotive shop. With a maximum wheelbase range of 194″ to 236″, this lift can easily accommodate a variety of medium-sized transit vehicles. With single-point air-actuated lock release, disengaging column locks is a breeze, particularly with our alignment model. These features make this lift incredibly convenient and easy to use, saving you valuable time and effort. The diamond-plate approach ramps offer positive vehicle traction, ensuring the safety and stability of every vehicle you work on. The adjustable runways can accommodate a wide range of tread widths, making this lift even more versatile and adaptable to your specific needs. For added convenience, the approach ramps feature heavy-duty steel roller wheels, allowing for easy positioning of vehicles onto the lift. And with black columns only, this lift is functional but also sleek and stylish. But the fundamental standout feature of this lift is its built-in runway rail system. This innovative design allows you to add extra convenience options like rolling jacks and oil drain pans (sold separately) with ease, making this lift a genuinely versatile and essential tool for any automotive shop.

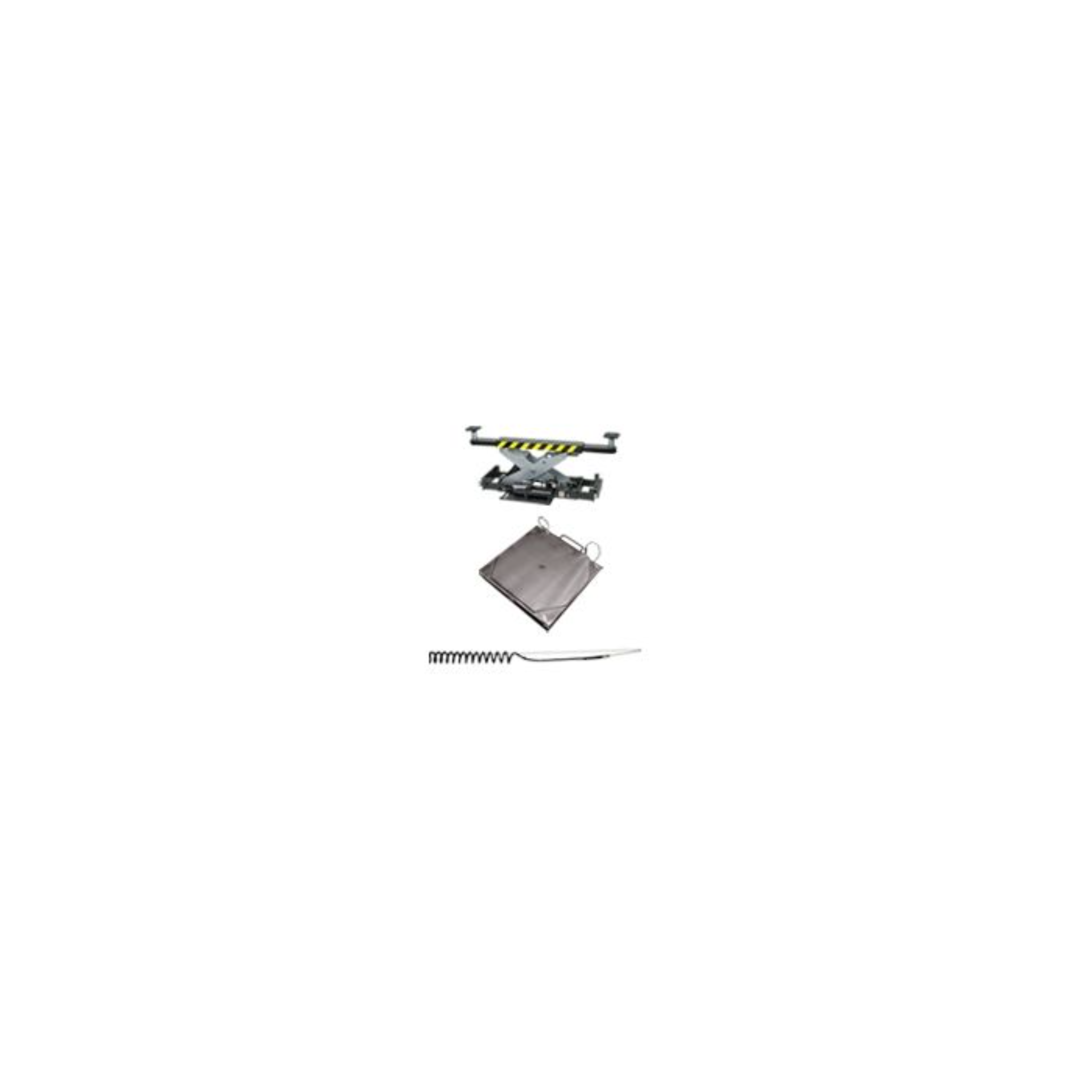

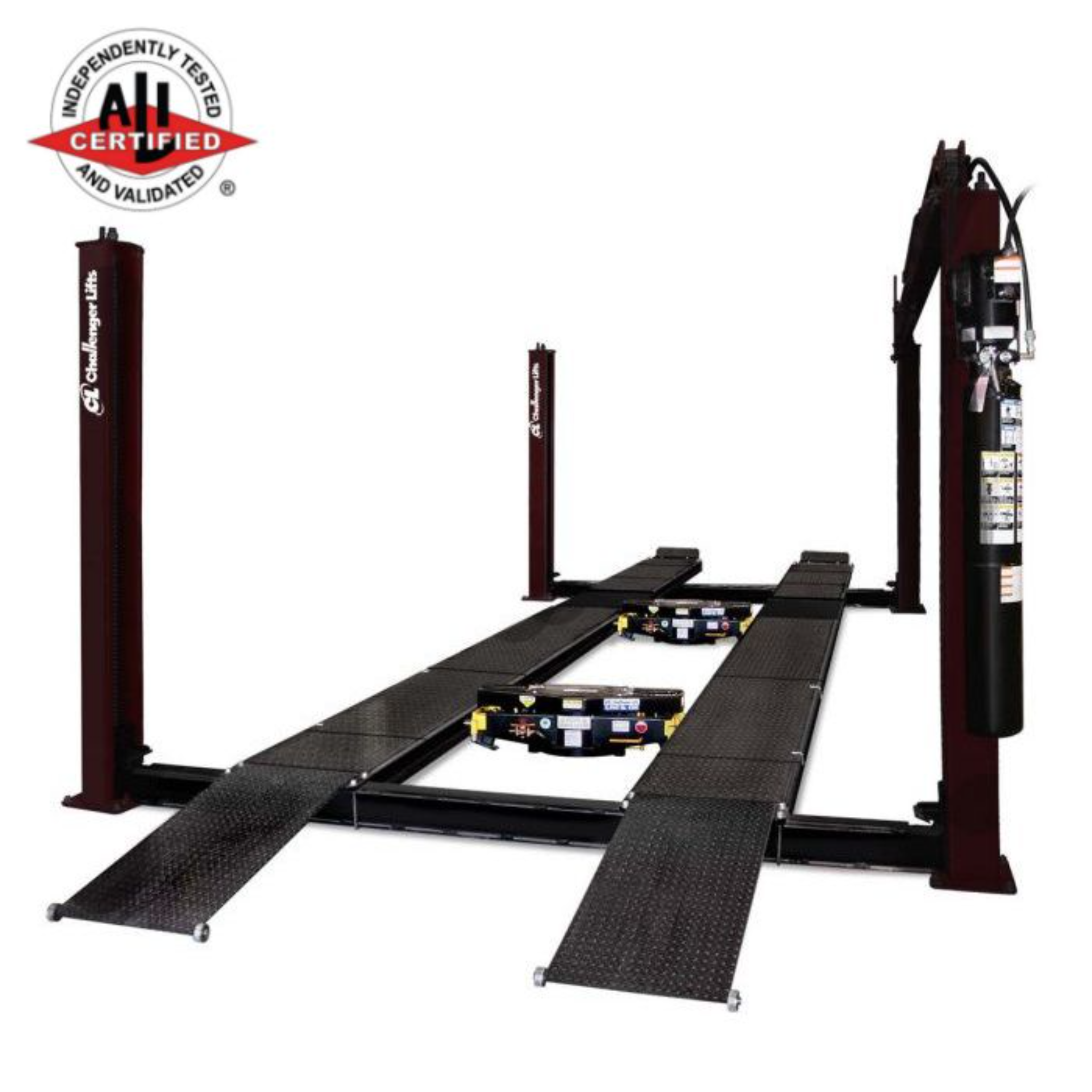

AR44018AR four post alignment truck lift package includes two 9,000 lb. capacity rolling jacks (RJ9000), stainless steel turning radius gauges and internal airline kit for dual rolling jack operation. Our 18,000 lb. alignment rack is the perfect complement to any medium duty automotive service operation. With 22″ wide runways, 17 level locking heights, a 4 wheel alignment range from 98” – 206”, a maximum 2 wheel alignment of 220”, 141-1/2″ overall width and 311-1/2″ overall extended length, the AR44018AR is the right rack for wheel alignment and other general service work.
- 18,000 lb. lift capacity
- 194” to 236” max wheelbase

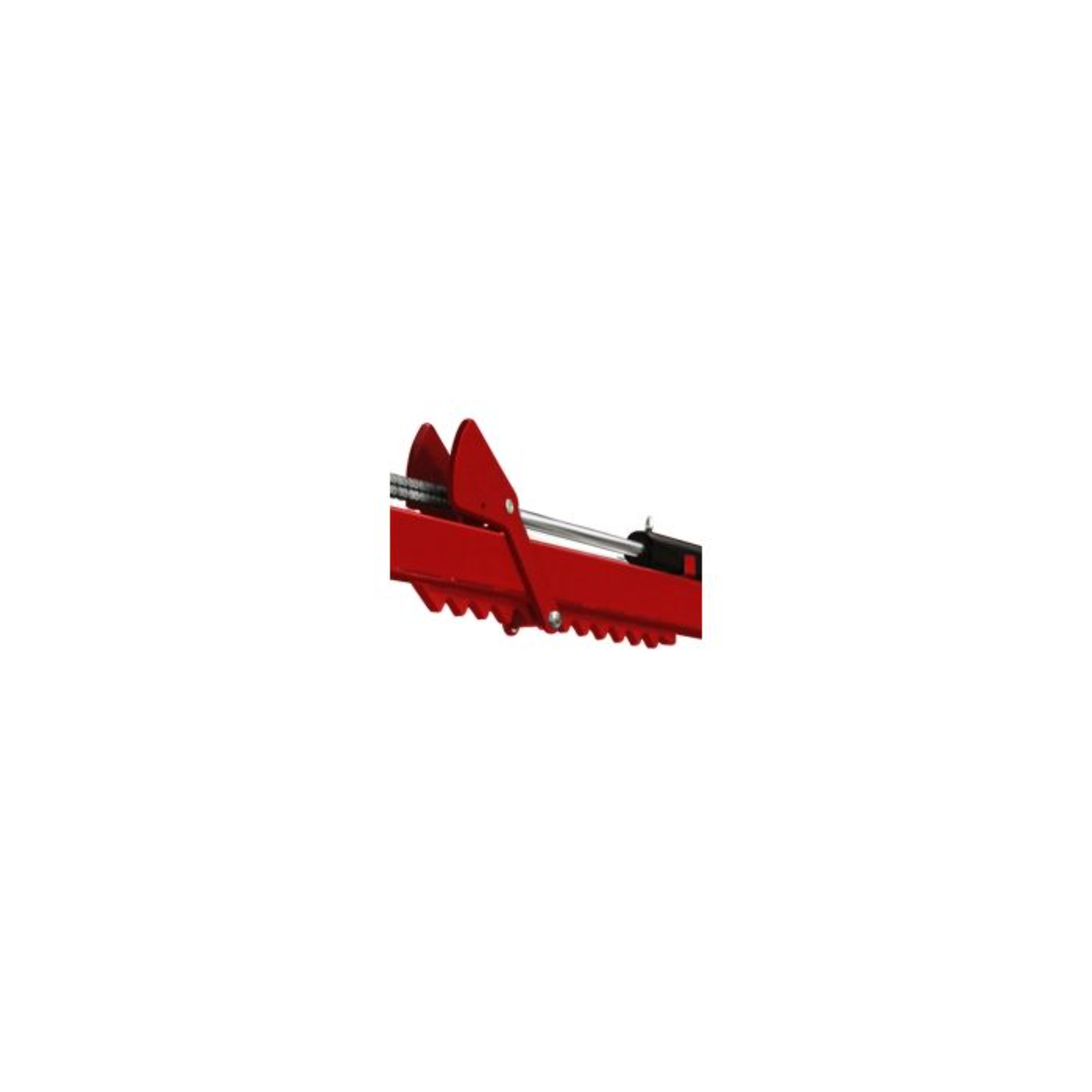

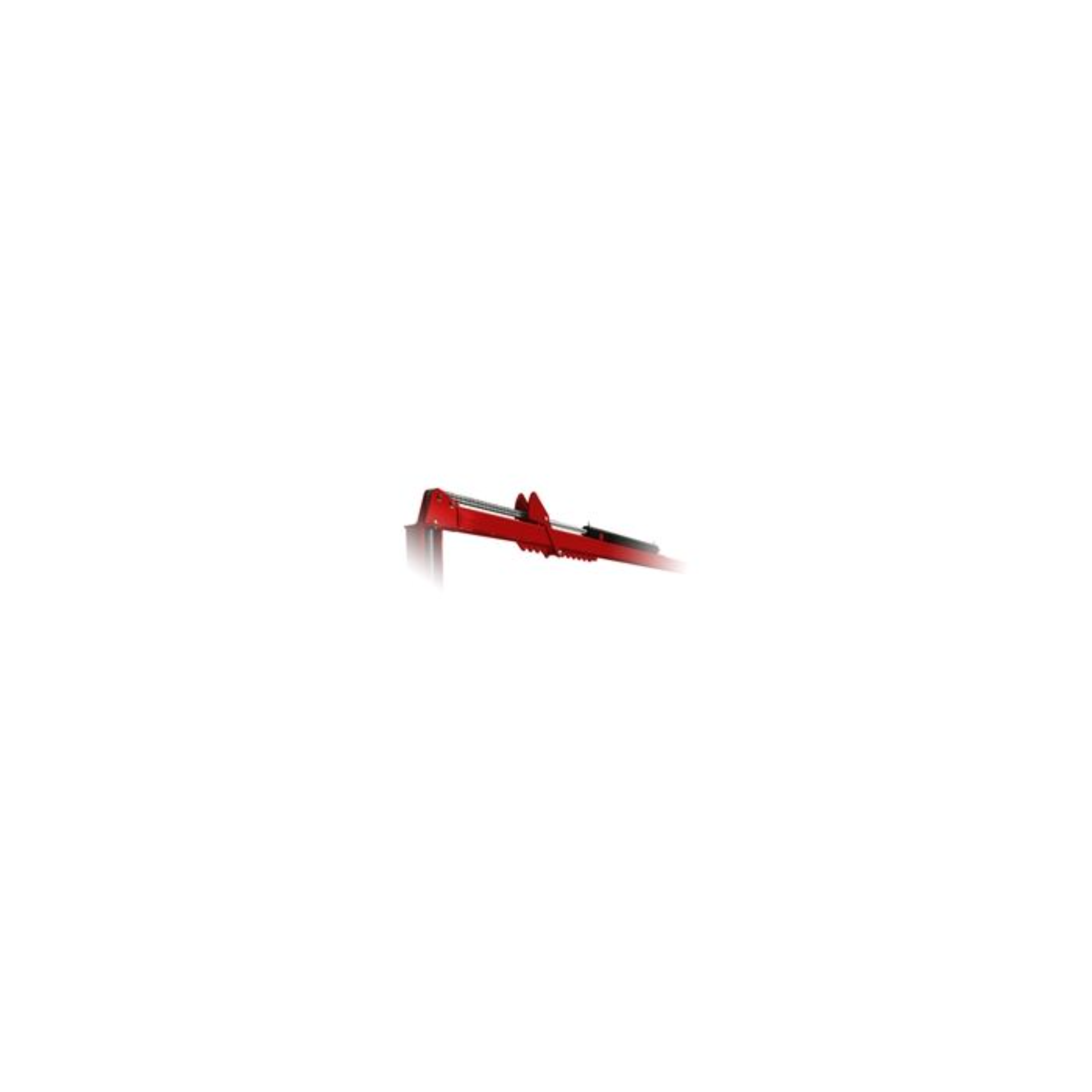

- Single-point air actuated lock release disengages column locks simultaneously (Alignment model only)

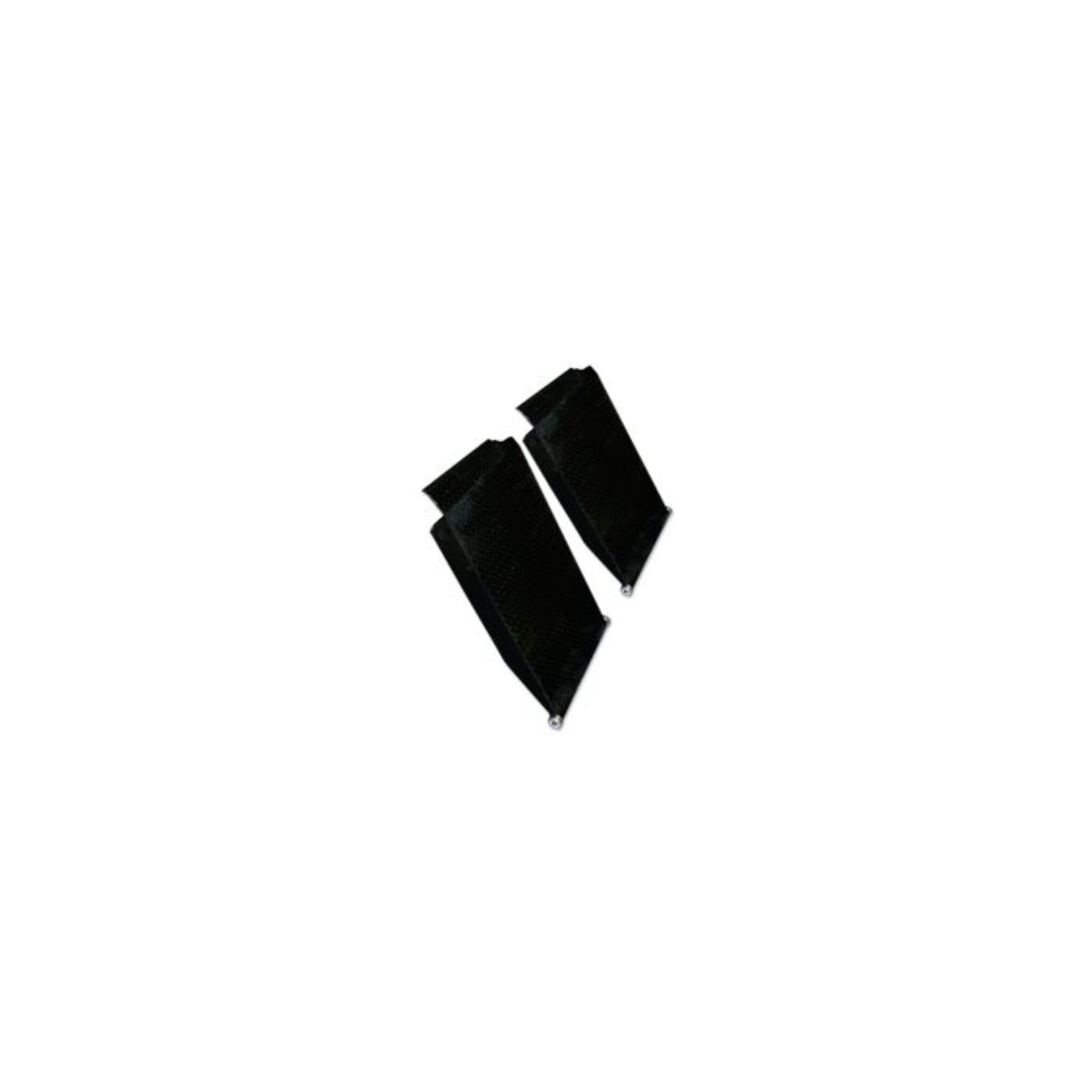

- Diamond-plate approach ramps for positive vehicle traction

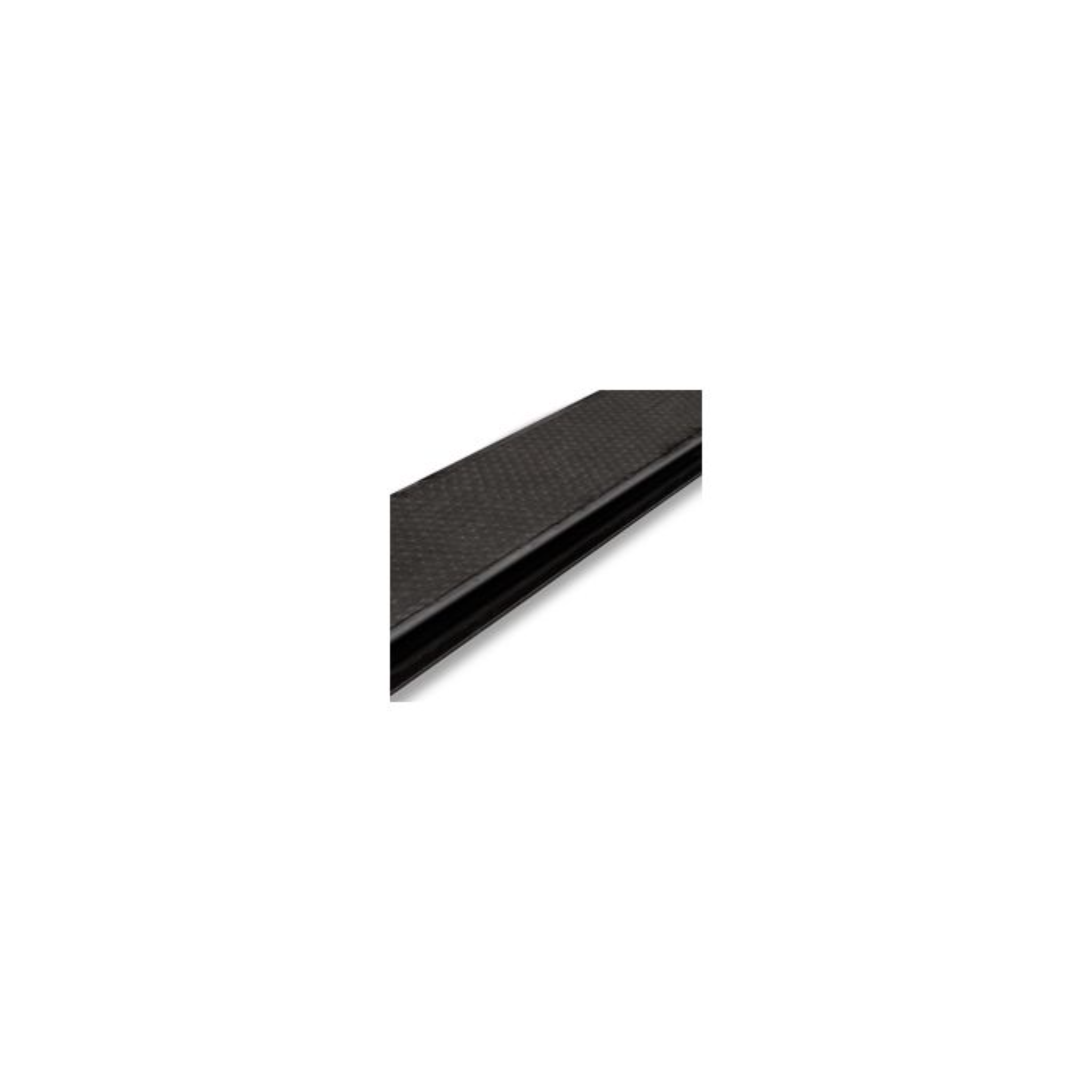

- Adjustable runways to accommodate tread widths of a variety of medium-sized transit vehicles (rolling jack application requires fixed runways and runway spacing of 33-15/16″ to 41-11/16″)
- Approach ramps with heavy-duty steel roller wheels
- Available with black columns only

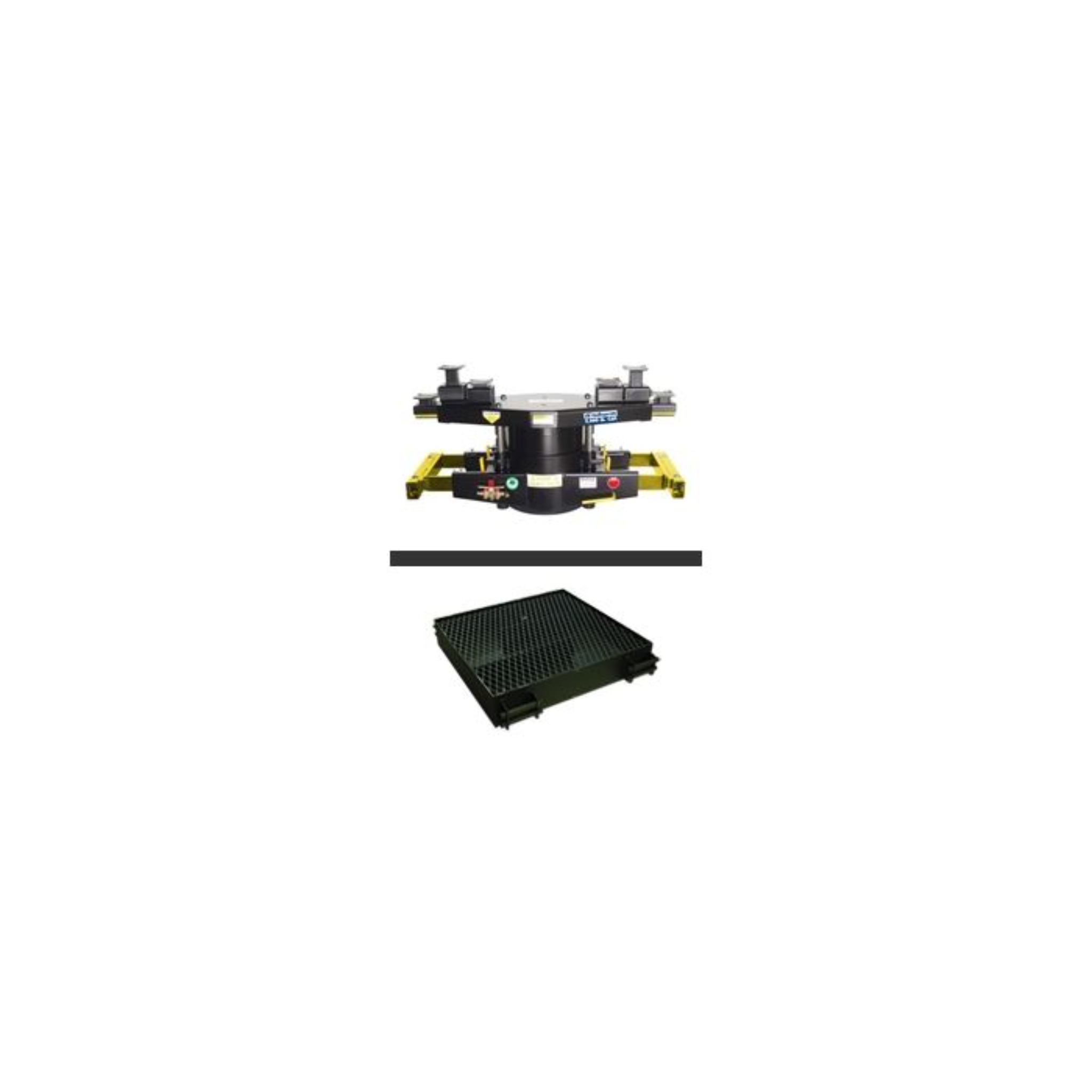

- Built-in runway rail system provides versatility to add convenience options like rolling jacks and oil drain pan (sold separately)
| Model Number | 44018 | 44018E | 44018AR |
|---|---|---|---|
| Lifting Capacity | 18,000 lbs. | 18,000 lbs. | 18,000 lbs. |
| Max Wheelbase | 194” | 230” | 236” |
| Rise Height | 78.75” | 78.75” | 83.375” |
| Overall Length | 259” | 292” | 311.5” |
| Overall Width | 138.125” | 138.125” | 141.5” |
| Inside Columns | 121” | 121” | 122” |
| Between Columns | 204” | 240” | 204” |
| Height Overall | 102.5” | 102.5” | 102.5” |
| Height of Runways | 7.25” | 7.25” | 11.875” |
| Width of Runways | 22” | 22” | 22” |
| Width Between Runways | 36″ – 54″ | 36″ – 54″ | 36″ – 54″ |
| Min – Max 4 Wheel Align | – | – | 98” – 206” |
| Max 2 Wheel Alignment | – | – | 220” |
| Motor / Voltage | 3HP, 208 – 230v Single Phase* | 3HP, 208 – 230v Single Phase* | 3HP, 208 – 230v Single Phase* |
| Amps | 30 | 30 | 30 |
| Speed of Rise | 60 s | 60 s | 60 s |
| Colors Available | Black | Black | Black |
