Challenger adds the industry leading Versymmetric® Technology to the popular economy grade 10,000 lb 2-post lift, the LE10. Expand your service capabilities with the VLE10’s ability to lift a wide range of vehicles, including Forbes Top 20 Best-Selling Vehicles of 2020.
Features & Benefits

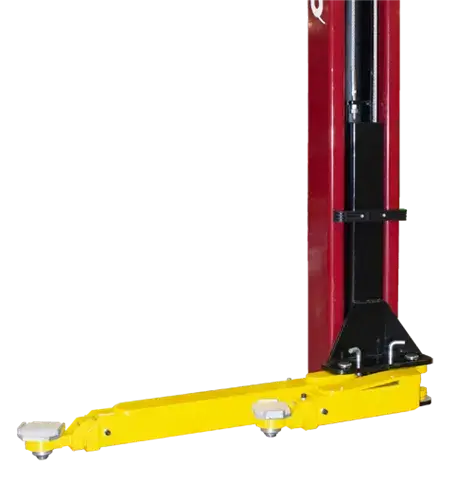

- 3-Stage Versymmetric® front arms and 2-Stage rear arms provide a wide arm sweep for asymmetric and symmetric lifting in the same service bay.
- 11.875” standard height fits in service bays with 12’ ceiling height.
- Double telescoping screw pads with rubber foot pad.
- Padded overhead shut-off system prevents vehicle damage.
- Jacketed pulley-less single-point mechanical lock release system that was once exclusive to our CL series lifts are now standard on the VLE10.
- Rubber door guards protect vehicle from door damage.
- Premium powder coat finish provides long-lasting durability.
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability.
Specifications
| Lifting Capacity | 10,000 lbs |
|---|---|
| Lift Configuration | Symmetric and Asymmetric |
| Arm Configuration | 3-Stage Versymmetric® Front/2-Stage Rear |
| Max Load Per Arm | 2500 lbs |
| Rise Height (screw pads at highest position) | 74.75″ |
| Overall Height | Standard: 143.875″ Extended Height: 167.875″ |
| Overall Width | 131.625″ |
| Drive-Thru Clearance | 98.375″ |
| Floor to Overhead Switch | Standard: 137″ Extended Height: 161″ |
| Front Arm Reach | 22.3125″-39.375″ |
| Rear Arm Reach | 38.375″-55.375″ |
| Screw Pad Height | 4.25″-6.75″ |
| Between Columns | 110.25″ |
| Motor/Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| Rise Time | 44s |
| Ceiling Height Required | Standard: 12′ Extended Height 14′ |
